Medler MADR series of planets

Medler MADR series of planetsproduct presentation

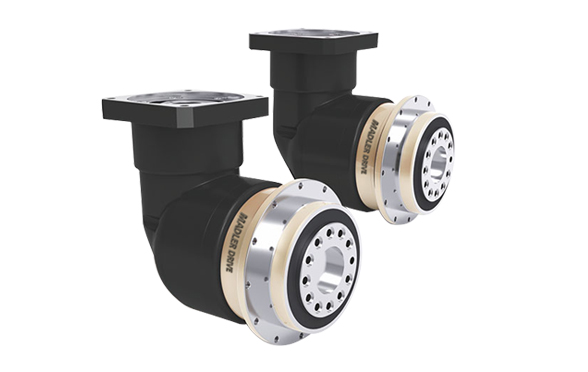

Madler MADR planetary series is coaxial square flange output, with high accuracy, good rigidity, large bearing capacity, high efficiency, long life, low noise, light size, beautiful appearance, easy installation, accurate positioning and other characteristics, suitable for AC servo motor, DC servo motor, stepper motor deceleration drive.

Patent no：

product description
technical parameters

The Madler MADR series of planets has the following main characteristics:

1, low noise: less than 65dB.

2, low back clearance: single stage can reach 3 arc minutes, double stage can reach 5 arc minutes.

3, high efficiency: single section in more than 95%, double section in more than 92%.

4, High input speed: up to 8000RPM.

5, high torque: higher than the general standard planetary reducer torque.

6, high stability: the use of high strength alloy steel, the whole gear after hardening treatment, not only the surface hardening, to ensure the service life and long-term use still maintain the initial precision.

7, high reduction ratio: using modular design, planetary gear box can be connected to each other, speed ratio can reach more than 1/1000.
